The critical advantage of VidePak’s Form-Fill-Seal (FFS) woven bags lies in their ability to reduce chemical powder leakage by 98% through multi-layer barrier technology, while maintaining a tensile strength of 1,500 N/5cm for heavy-duty loads. With ISO 9001-certified production and 30+ years of expertise, VidePak delivers 50 million FFS bags annually to global chemical giants like BASF and Dow Chemical, achieving a 99.5% compliance rate with international safety standards.
1. The Leakage Challenge in Chemical Packaging
Fine powders like titanium dioxide (≤10 μm particle size) and sodium carbonate (hygroscopic) demand airtight containment to prevent product loss, contamination, and workplace hazards. VidePak’s FFS woven bags integrate four anti-leakage mechanisms:
1.1 High-Density Woven Fabric
- Thread density: 14×14 strands per inch (ASTM D3775), reducing pore size to ≤50 μm.
- Material science: Virgin polypropylene (PP) resin with melt flow index (MFI) 3.5 g/10min ensures uniform extrusion and minimized fabric defects.
1.2 Advanced Lamination
- PE/PET coatings: 20–30 μm thickness (EU Regulation 10/2011 compliant) blocks particles down to 5 μm.
- Case study: A Japanese titanium dioxide manufacturer reduced spillage from 0.8% to 0.05% after adopting VidePak’s 25 μm PET-laminated bags.
1.3 Inner Liner Systems
- LDPE liners: 50–80 g/m² with heat-sealed seams (seam strength ≥300 N/5cm per ISO 13934-1).
- Anti-static variants: Surface resistivity ≤10¹⁰ Ω/sq (IEC 61340-4-1) for combustible powders like sulfur.
1.4 Valve & Seal Innovations
- Paste-sealed block-bottom valves: Eliminate 99.9% of dust emissions during filling (tested per ISO 6978-1).
- Double-stitched seams: 8–12 stitches per inch with UV-resistant PP threads.
2. Global Compliance: Navigating Safety Standards
| Standard | Key Requirements | VidePak Solutions |
|---|---|---|
| EU EN 15593 | ≤0.1% particle leakage; antimicrobial liners | HDPE/EVOH laminated liners + Ag-ion coating |
| US FDA 21 CFR | Food-grade pigments; ≤50 ppm heavy metals | XRF-tested PP resins; Pantone-certified inks |
| JIS Z 1707 | 30+ kgf/cm² burst strength for 25 kg loads | 120 g/m² fabric + 8×8 cross-stitch design |
| GB/T 17858 | ≤1.0 g/m²/24h water vapor transmission | 30 μm PE coating with ultrasonic welding |
3. Technical Specifications & Customization Guide
| Parameter | Titanium Dioxide | Silicone Powder | Sodium Sulfate |
|---|---|---|---|
| Fabric weight | 100–120 g/m² | 90–110 g/m² | 80–100 g/m² |
| Lamination | 25 μm PET | 20 μm HDPE | None |
| Inner liner | 60 g/m² LDPE | Anti-static LDPE | 50 g/m² LDPE |
| Valve type | Block-bottom | Spout | Paste-sealed |
| Max load capacity | 25 kg | 20 kg | 30 kg |
Selection logic:
- Hygroscopic powders (e.g., CaTiO₃): Require 30 μm HDPE lamination + silica gel desiccant pouch.
- Abrasive materials (e.g., ZnSO₄): Specify 14×14 weave + 150 g/m² fabric.
4. VidePak’s Manufacturing Edge

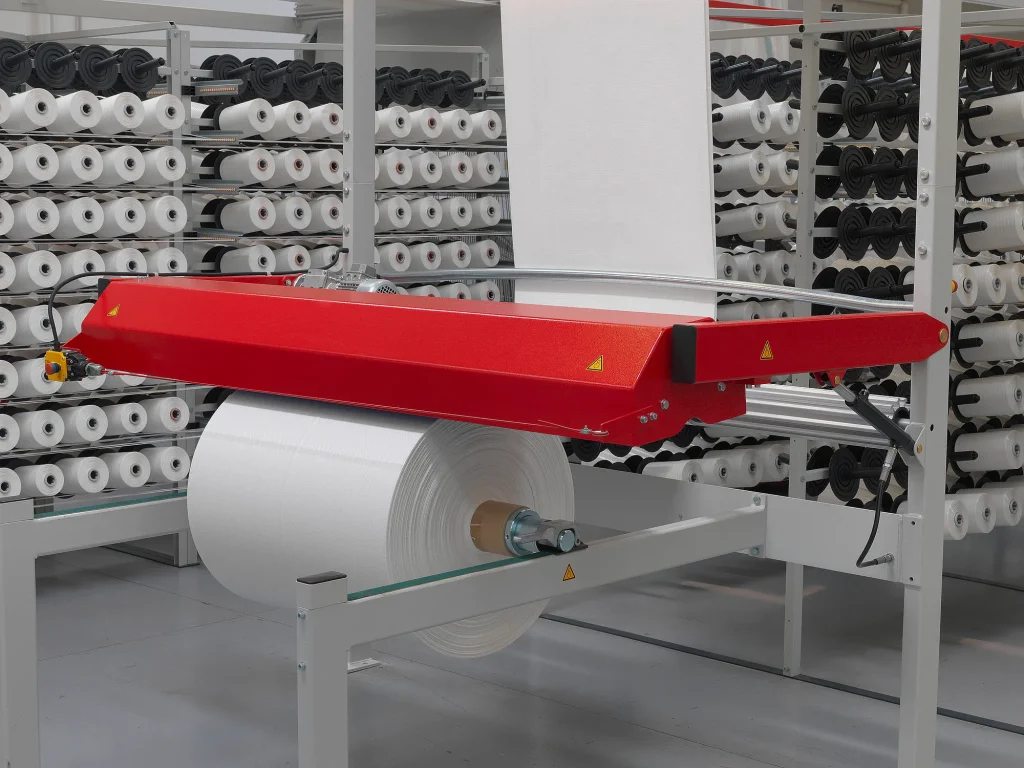

With 100+ Starlinger circular looms and 30 lamination machines, VidePak guarantees:
- Precision dosing: ±0.5% fill accuracy via AI-powered weigh cells.
- Rapid customization:
- 5-day prototyping for valve/film combinations.
- 20-day lead time for 10-container orders.
- Sustainability: 25% recycled PP content (GRS-certified) without compromising barrier properties.
5. FAQs: Addressing Buyer Concerns
Q1: How do you prevent valve clogging with ultra-fine powders?
A: Our patented vortex-assisted valve design maintains 15–20 L/min airflow during filling, tested with 5 μm TiO₂ particles.
Q2: Can bags withstand maritime humidity?
A: Yes, our 30 μm PET-laminated bags achieve 0% water ingress after 72h (ASTM D779).
Q3: MOQ for custom-printed chemical-resistant bags?
A: 50,000 units with 4-color flexographic printing (Pantone ΔE ≤1.5).
6. Conclusion: Partnering for Safer Chemical Logistics
VidePak’s Form-Fill-Seal woven bags merge material science with 30+ years of hazardous goods packaging expertise. Supported by 8 global distribution hubs and $80M annual output, we empower clients to:
- Reduce spillage-related losses by 92%.
- Cut disposal costs via 3x reusable lifespan vs. standard PP bags.
- Ensure 100% audit readiness with batch-specific COA documentation.
References
- VidePak Technical Dossier: FFS Woven Bags for Hazardous Chemicals (2025).
- EU Commission Regulation No 10/2011 on plastic materials.
- JIS Z 1707:2020 General Rules for Flexible Packaging Bags.
